ATEN ATEN-VM0808HB

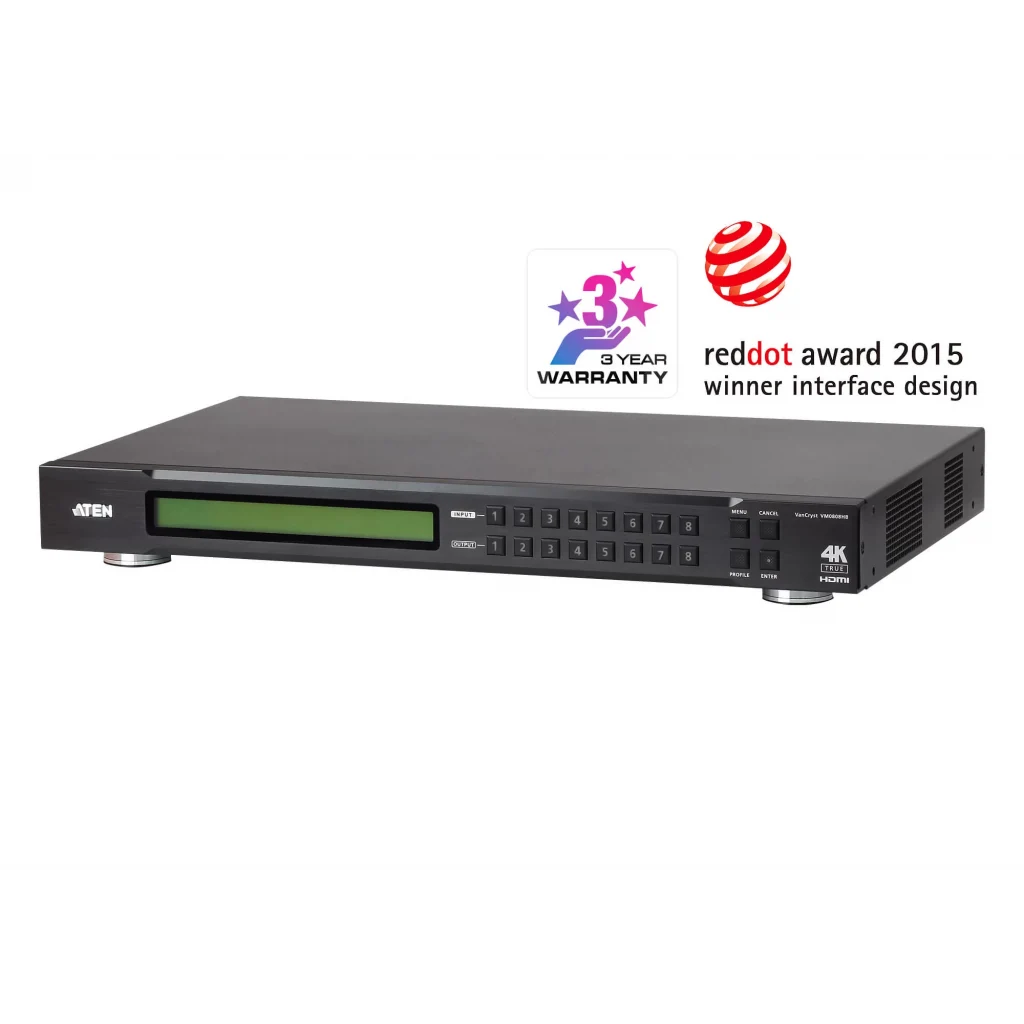

8 X 8 TRUE 4K HDMI MATRİX SWİTCH
Barkod:4719264646836
Marka :Aten
Kategori:Digital Signage
Stok:3
109.832,11 TL
KARGO BEDAVA

Havale/EFT ile 107.635,47 TL

20.868,10 TL 'den başlayan taksitlerle

Aynı gün kargoda!

Connects any of 8 HDMI sources to any of 8 HDMI displays
Supports True 4K resolutions up to 4096 x 2160 @ 60Hz (4:4:4)
Supports HDR10⁺
Multiple Control Methods – system management via front-panel pushbuttons, IR remote, RS-232 control, and Web GUI/Telnet via Ethernet connections
View and control via ATEN Video Matrix Control App in a swift and agile way
EDID Expert™ – selects optimum EDID settings for smooth power-up, high-quality display and use of the best video resolution across different screens
Signaling rates up to 6 Gbits for flawless true 4K output
Supports Dolby True HD and DTS HD Master audio
HDMI (3D, Deep Color, 4K) and HDCP 2.2 compatible
Supports Consumer Electronics Control (CEC)
Power-on Detection – switches to the next powered-on source when one source is powered off
ESD protection for HDMI
Supports ATEN’s LockPro™ HDMI cable lock for secure HDMI cable connections
Firmware upgradeable
Rack mountable (1U design)

Video Input
Interfaces	8 x HDMI Type A Female (Black)
Impedance	100 Ω
Max. Distance	5.0 m / 4K@60Hz (4:4:4)
Video Output
Interfaces	8 x HDMI Type A Female (Black)
Max. Distance	5m / 4K@60Hz (4:4:4) 15m / 1920 x 1200
Impedance	100 Ω
Video
Max. Pixel Clock	600 MHz
Max. Resolution	Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4)
Max. Data Rate	18 Gbps( 6 Gbps Per Lane)
Compliance	HDMI (3D, 4K, Deep Color) HDCP 2.2 Compatible Consumer Electronics Control (CEC)
Control
RS-232	Connector: 1 x DB-9 Female (Black) Baud rate and protocol: Baud Rate: 19200, Data Bits: 8, Stop Bits:1, Parity: No, Flow Control: No
IR	1 x Mini Stereo Jack Female (Black)
Ethernet	1 x RJ-45 Female
EDID Settings	EDID Mode: Default / Port 1 / Remix / Customized (EDID Wizard Support)
Environmental
Operating Temperature	0-40°C
Humidity	0 - 80% RH, Non-Condensing
Storage Temperature	-20 - 60°C
Physical Properties
Weight	3.99 kg ( 8.79 lb )
Housing	Metal
Dimensions (L x W x H)	43.24 x 26.23 x 4.40 cm (17.02 x 10.33 x 1.73 in.)
Connectors
Power	1 x 3-Prong AC Socket
Carton Lot	1 pc
Power Consumption	AC110V:38.1W:179BTU AC220V:37.8W:177BTU
Power
Maximum Input Power Rating	100-240 VAC; 50-60 Hz; 1.0A

Package Contents

1x VM0808HB 8 x 8 True 4K HDMI Matrix Switch
1x Power Cord
1x IR Remote Control
1x IR Receiver
1x Rack Mounting Kit
1x User Instructions
